8 types of 3A/4A high current SMD surface mount rectifiers, specially designed for surface mount applications
Release Date：2020-07-18
8 types of 3A/4A high current SMD surface
mount rectifiers, specially designed for surface mount applications
MSB30B, MSB40B, FMSB30G, FMSB30J, FMSB30M. FMSB40G, FMSB40J, FMSB40M. 8 surface mount glass passivation bridge rectifiers, using UMSB surface mount method.
Both MSB30B and MSB40B bridge rectifiers have a maximum forward voltage drop of 1.0V (3.0A/4.0A).
FMSB30G, FMSB30J, FMSB30M. FMSB40G, FMSB40J, FMSB40M. Fast recovery bridge rectifiers all have a maximum forward voltage drop of 1.3V (3.0A/4.0A). The smaller forward voltage drop makes the components have the advantages of lower power consumption and easier drive.
The average rectified output current is 3.0A/4.0A, which is suitable for applications requiring large current. The peak forward surge current IFSM is 80A/95A. Possessing higher anti-surge capability can prevent devices from being damaged by surge currents. With a small maximum DC reverse current, the maximum DC reverse current IR under the rated DC blocking voltage is 5µA (TA=25°C) or 100µA (TA=125°C). Smaller reverse current can be effectively reduced Current consumption can reduce the heat generation in the circuit to a certain extent, reduce the power consumption of components and improve the electrical safety of the circuit. The junction capacitance is 50pF, and the operating temperature range and storage time range are both -55℃～+150℃. The wide temperature range meets the application requirements of military-grade products and can be applied to applications with more severe ambient temperatures.
FMSB30G, FMSB30J, FMSB30M. The maximum repetitive peak reverse voltage and maximum DC blocking voltage of standard bridge rectifiers are 400V, 600V, 1000V, and the maximum RMS voltage is 280V, 420V, 700V, respectively. With different pressure resistance capabilities. Reasonable selection can be made according to actual needs. (See the specification below for details)
Figure 1: MSB30A～MSB30M specification
MSB30A～MSB30M Specification (click to enter specification)
http://www.gk-goodwork.com/UploadSysFiles/files/3/GK/34/MSB30A-MSB30M.pdf

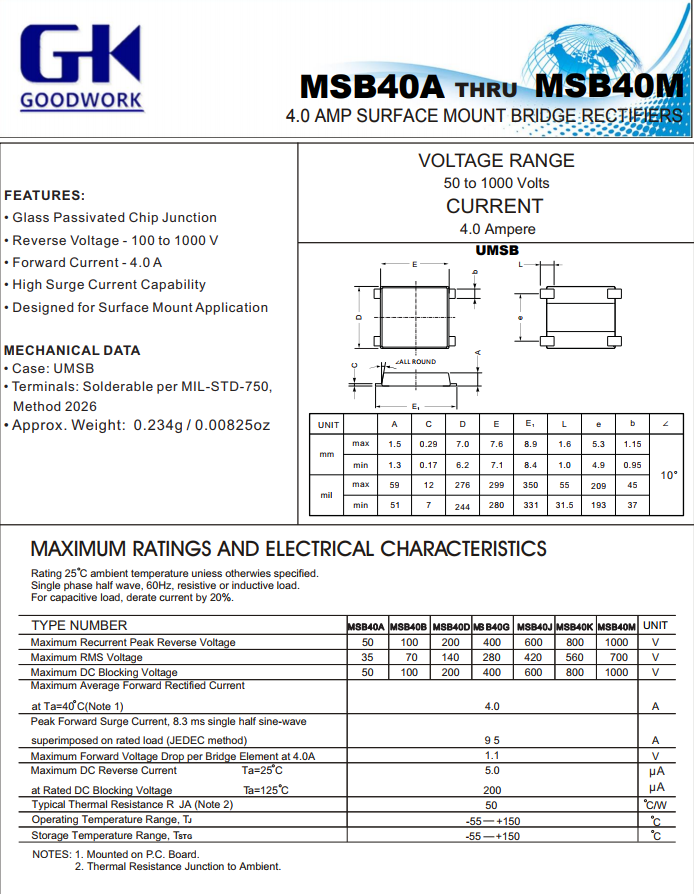

Figure 2: MSB40A～MSB40M specification
MSB40A～MSB40M Specification (click to enter specification)
http://gk-goodwork.com/UploadSysFiles/files/3/GK/34/MSB40A-MSB40M.pdf
Figure 3: Specification of FMSB30A～FMSB30M
FMSB30A～FMSB30M Specification (click to enter specification)
http://gk-goodwork.com/UploadSysFiles/files/3/GK/33/FMSB30A-FMSB30M.pdf

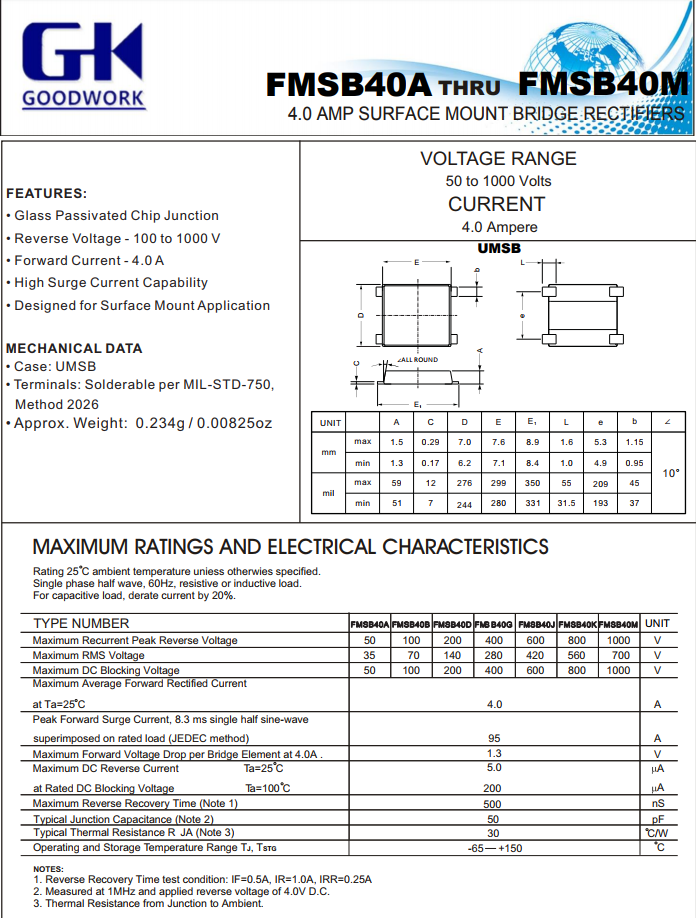

Figure 4: Specification of FMSB40A～FMSB40M：
FMSB40A～FMSB40M Specification (click to enter specification)
http://gk-goodwork.com/UploadSysFiles/files/3/GK/33/FMSB40A-FMSB40M.pdf
Eatures of rectifier bridge package UMSB:
1. Using GPP chip, stable high temperature performance, good heat dissipation, high impact resistance, surge current resistance up to 95A, and halogen-free epoxy resin.
2. Small size, big energy, can replace the traditional old process plug-in rectifier bridge KBP, D3K, KBL, GBU and other package 3-4A specifications.
3. SMT surface mount type flat pins, saving circuit board space.
Rectifier bridge package UMSB application areas:
•Military Industry
•industry
•business
http://gk-goodwork.hqew.com/
MSB30B, MSB40B, FMSB30G, FMSB30J, FMSB30M. FMSB40G, FMSB40J, FMSB40M. 8 surface mount glass passivation bridge rectifiers, using UMSB surface mount method.
Both MSB30B and MSB40B bridge rectifiers have a maximum forward voltage drop of 1.0V (3.0A/4.0A).
FMSB30G, FMSB30J, FMSB30M. FMSB40G, FMSB40J, FMSB40M. Fast recovery bridge rectifiers all have a maximum forward voltage drop of 1.3V (3.0A/4.0A). The smaller forward voltage drop makes the components have the advantages of lower power consumption and easier drive.
The average rectified output current is 3.0A/4.0A, which is suitable for applications requiring large current. The peak forward surge current IFSM is 80A/95A. Possessing higher anti-surge capability can prevent devices from being damaged by surge currents. With a small maximum DC reverse current, the maximum DC reverse current IR under the rated DC blocking voltage is 5µA (TA=25°C) or 100µA (TA=125°C). Smaller reverse current can be effectively reduced Current consumption can reduce the heat generation in the circuit to a certain extent, reduce the power consumption of components and improve the electrical safety of the circuit. The junction capacitance is 50pF, and the operating temperature range and storage time range are both -55℃～+150℃. The wide temperature range meets the application requirements of military-grade products and can be applied to applications with more severe ambient temperatures.
FMSB30G, FMSB30J, FMSB30M. The maximum repetitive peak reverse voltage and maximum DC blocking voltage of standard bridge rectifiers are 400V, 600V, 1000V, and the maximum RMS voltage is 280V, 420V, 700V, respectively. With different pressure resistance capabilities. Reasonable selection can be made according to actual needs. (See the specification below for details)
Figure 1: MSB30A～MSB30M specification
MSB30A～MSB30M Specification (click to enter specification)
http://www.gk-goodwork.com/UploadSysFiles/files/3/GK/34/MSB30A-MSB30M.pdf
Figure 2: MSB40A～MSB40M specification
MSB40A～MSB40M Specification (click to enter specification)
http://gk-goodwork.com/UploadSysFiles/files/3/GK/34/MSB40A-MSB40M.pdf
Figure 3: Specification of FMSB30A～FMSB30M
FMSB30A～FMSB30M Specification (click to enter specification)
http://gk-goodwork.com/UploadSysFiles/files/3/GK/33/FMSB30A-FMSB30M.pdf
Figure 4: Specification of FMSB40A～FMSB40M：
FMSB40A～FMSB40M Specification (click to enter specification)http://gk-goodwork.com/UploadSysFiles/files/3/GK/33/FMSB40A-FMSB40M.pdf
Eatures of rectifier bridge package UMSB:
1. Using GPP chip, stable high temperature performance, good heat dissipation, high impact resistance, surge current resistance up to 95A, and halogen-free epoxy resin.
2. Small size, big energy, can replace the traditional old process plug-in rectifier bridge KBP, D3K, KBL, GBU and other package 3-4A specifications.
3. SMT surface mount type flat pins, saving circuit board space.
Rectifier bridge package UMSB application areas:
•Military Industry
•industry
•business
http://gk-goodwork.hqew.com/
